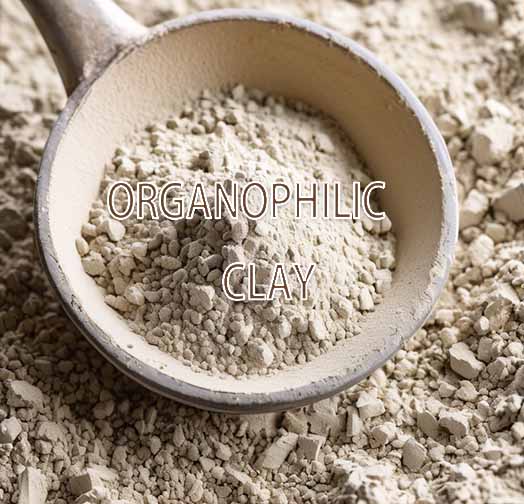

Organic Clay Powder For Oil Drilling Mud

Organic Clay Powder  : At present, the use of organic bentonite in oilfield drilling is extremely large, respectively, can be used in the base oil for diesel, mineral oil and synthetic oil systems. Although the base oil is different, but the performance of organic bentonite in the mud fluid is similar, it mainly plays a suspended performance and thixotropic properties.

Organic Clay Powder | Organic Bentonite Clay

Organic Clay Powder

Organic Clay Powder | Organoclay

Organic Clay Powder testing, yield value is an important index of our test, it is mainly used to measure the shear strength of the mud a data, generally in the diesel system, the higher the yield index, indicating that it can provide more shear force at low speeds .

Organic Clay Powder is also realized that the effect of preventing sedimentation. And in the process of using organic bentonite.

Especially in the diesel system, we need to take into account the phenomenon of an uneven dispersion, then in order to solve this uneven dispersion, we generally recommend that you use high-speed mixing equipment, or add a certain amount of polar activator, usually we recommend the polar activator is methanol, ethanol and propylene carbonate.

Organoclay CP-2, an amine-treated bentonite, demonstrates its unique viscosity-enhancing function in diesel-based lubricant systems.

This viscosity-enhancing agent not only significantly improves the lubricant’s load-bearing capacity, allowing it to maintain stable performance under heavy loads, but also enhances the lubricant’s suspension performance, effectively supports heavy object operations, and optimizes removal during cutting.

Organic Clay Powder CP-2 organoclay plays a key role in the filtration process.

Organic Clay Powder helps form the filter cake, improves filtration efficiency, and achieves more refined filtration control, thereby ensuring the purity and performance stability of the lubricant. This professional-grade application effect makes CP-2 organoclay an indispensable additive in diesel-based lubricants.

Properties

Composition                       Organically modified bentonite clay

Physical appearance                Off white to tan free-flowing powder

Moisture content (105℃,2hr)         ≤4%

Particle size (<76μm or 200mesh)    ≥95%



Advantages

Effective viscosifier and gellant

Aids control of fluid loss to the formation

Increases emulsion stability

Improves cuttings carrying and hole cleaning capacity

Suspends weighting materials and other solids

Confers temperature stability to the fluid



Application

Base oil:

Diesel Oils

Crude Oils

Mineral Oils

Synthetic Oil



Viscosifying drilling Fluids:

Oil based drilling fluids

Invert emulsion fluids

Workover fluids

Completion fluids

Casing packs

Packer fluids

Spotting fluids

产品信息 Product information

产品名称Product: Organophilic clay

型号/规格 Type: CP-2

批号LOT NO.: 22120601

有效期Shelf life: 24MONTHS

数量 Quantity:950g

CAS. NO.:  68953-58-2



2.检查数据QC Specification/ Performance Specification

项目Items

技术要求Standard

检验结果Test result

外观Appearance

Gray or Tan powder

Gray powder

水份Moisture content, (105℃,2hr),%

≤4

3.82

粒度Particle size, % Thru 150 Mesh

≥95

96.53

灼烧失量LOI,(900℃)

28-31%

29.94%
